Color
Natural
Orientation
Right-Hand
Product Name

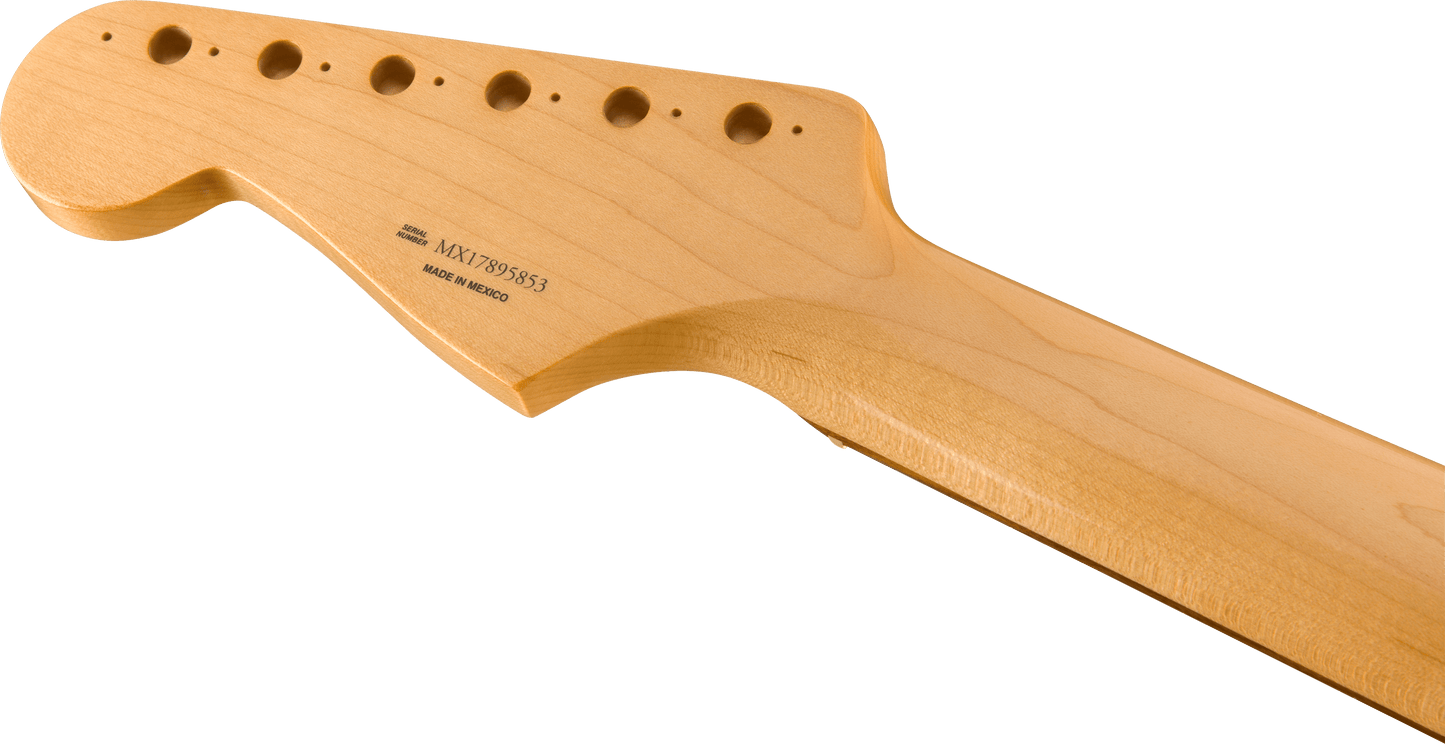

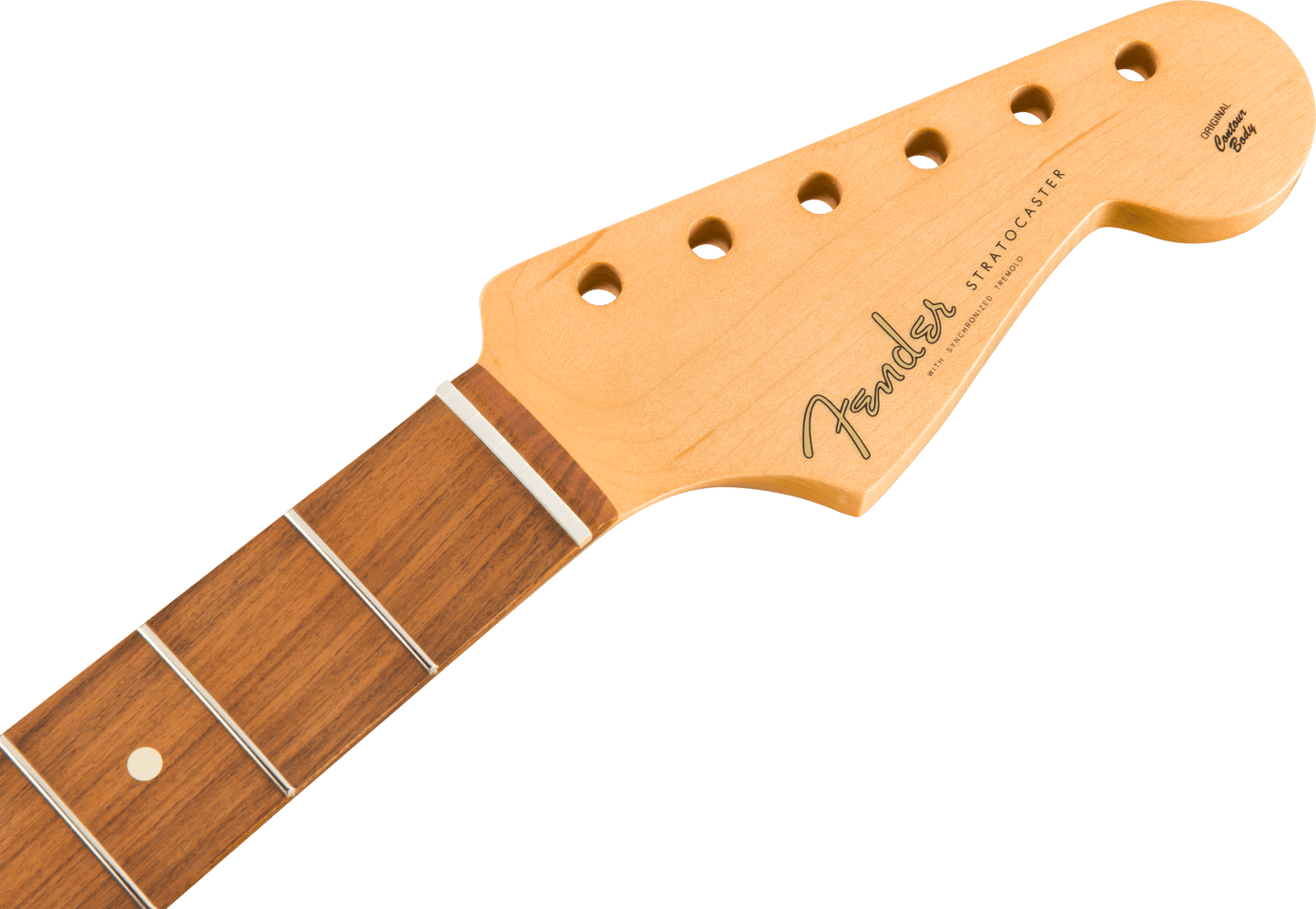

Classic Series 60's Stratocaster® Neck, 21 Vintage Frets, Pau Ferro
Series
Necks
Classic Series 60's Stratocaster® Neck, 21 Vintage Frets - Pau Ferro
Prezzo di listino
395,00 €
Prezzo di listino
395,00 €
Prezzo scontato
Prezzo unitario
per
IVA inclusa*
Classic Series 60's Stratocaster® Neck, 21 Vintage Frets - Pau Ferro
Classic Series 60's Stratocaster® Neck, 21 Vintage Frets - Pau Ferro
Numero del modello:
0991003921
Prezzo di listino
395,00 €
Prezzo di listino
395,00 €
Prezzo scontato
Prezzo unitario
per
IVA inclusa*
- Vintage \"C\" shape maple neck
- Pau ferro fingerboard with 7.25\" radius
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- Vintage-style heel adjust truss rod
- Six two-screw mount tuning machine holes
- Each neck is serialized and stamped during quality inspection
Impossibile caricare la disponibilità di ritiro
Details
Summary
Panoramica
60s-style Genuine Replacement Neck
Genuine Fender Stratocaster® guitar maple neck features a comfortable “C” profile and 7.25”-radius rosewood fingerboard with 21 vintage-style frets. Also includes vintage-style heel-adjust truss rod and pre-slotted synthetic bone nut. Gloss urethane finish for smooth feel. Crafted at Fender’s Ensenada, Mexico, manufacturing facility.
Specifications and Features:
Specifications and Features:
- Fingerboard: Rosewood
- Number of Frets: 21
- Fret Size: Vintage-Style
- Neck Shape: Vintage "C"
- Neck Material: Maple
- Neck Finish: Gloss Urethane
- Fingerboard Radius: 7.25" (184.1 mm)
- Scale Length: 25.5" (648 mm)
- Nut Material: Synthetic Bone (Melamine)
- Nut Width: 1.650" (42 mm)
- Position Inlays: White Dot
- Vintage-Style Heel Adjust Truss Rod Nut
- 6 pre-drilled tuning machine holes designed to fit vintage-style 2-screw mount tuning machines
- Each neck is serialized and stamped during quality inspection
- Walnut "skunk" stripe on back of neck
- Fender® Logo with "Original Contour Body" Decal
Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
Measurements:
Peg Hole Diameter - .358” (9.09 mm)
Headstock Thickness - .540” (13.71 mm)
Thickness at the 1st Fret - .820” (20.82 mm)
Thickness at the 12th Fret - .900” (22.86 mm)
Recommended Tuning Machines:
Vintage-Style Strat/Tele Tuning Machines (p/n 0047912000)
American Vintage Guitar Tuning Machines (p/n 0992040000)
Pure Vintage Guitar Tuning Machines (p/n 0992074000)
Overview
Caratteristiche
- Vintage \"C\" shape maple neck
- Pau ferro fingerboard with 7.25\" radius
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- Vintage-style heel adjust truss rod
- Six two-screw mount tuning machine holes
- Each neck is serialized and stamped during quality inspection
Specifiche
Generale
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (64.77 cm)
Varie
Commodity Code
9209.94.8000
Style
Vintage-Style
Manico
Fingerboard Material
Pau Ferro
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple
Neck Mounting
4-Bolt
Neck Shape
"C" Shape
Neck Thickness
1st Fret - .800” (20.32 mm), 12th Fret - .900” (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
