Color
Natural
Orientation
Right-Hand
Product Name

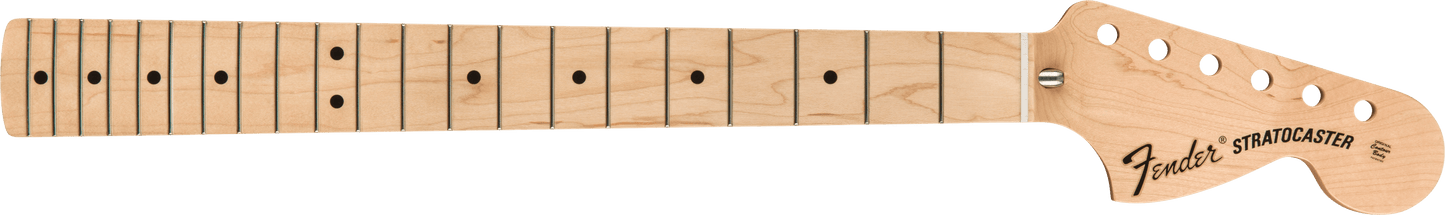

Classic Series '70s Stratocaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets, Maple Fingerboard
Series
Classic
Classic Series '70s Stratocaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets
Prezzo di listino
549,00 €
Prezzo di listino
549,00 €
549,00 €
Prezzo scontato
Prezzo unitario
per
IVA inclusa*
Classic Series '70s Stratocaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets
Classic Series '70s Stratocaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets
Prezzo di listino
549,00 €
Prezzo di listino
549,00 €
549,00 €
Prezzo scontato
Prezzo unitario
per
IVA inclusa*
Impossibile caricare la disponibilità di ritiro
Spedizione & resi
Spedizione gratuita per gli ordini superiori a 49 €. Consegna: Standard 2–4 giorni, Express 1–3 giorni. Scopri di più
Resi facili entro 30 giorni dalla ricezione. Scopri di più
Dettagli
Riepilogo
Panoramica
70s-style Genuine Replacement Neck
Genuine Fender Stratocaster® guitar maple neck features a comfortable “C” profile and 7.25”-radius rosewood fingerboard with 21 vintage-style frets. Also includes vintage-style heel-adjust truss rod and pre-slotted synthetic bone nut. Gloss urethane finish for smooth feel. Crafted at Fender’s Ensenada, Mexico, manufacturing facility.
Specifications and Features:
Specifications and Features:
- Fingerboard: Rosewood
- Number of Frets: 21
- Fret Size: Vintage-Style
- Neck Shape: Vintage "C"
- Neck Material: Maple
- Neck Finish: Gloss Urethane
- Fingerboard Radius: 7.25" (184.1 mm)
- Scale Length: 25.5" (648 mm)
- Nut Material: Synthetic Bone (Melamine)
- Nut Width: 1.650" (42 mm)
- Position Inlays: White Dot
- Vintage-Style Heel Adjust Truss Rod Nut
- 6 pre-drilled tuning machine holes designed to fit vintage-style 2-screw mount tuning machines
- Each neck is serialized and stamped during quality inspection

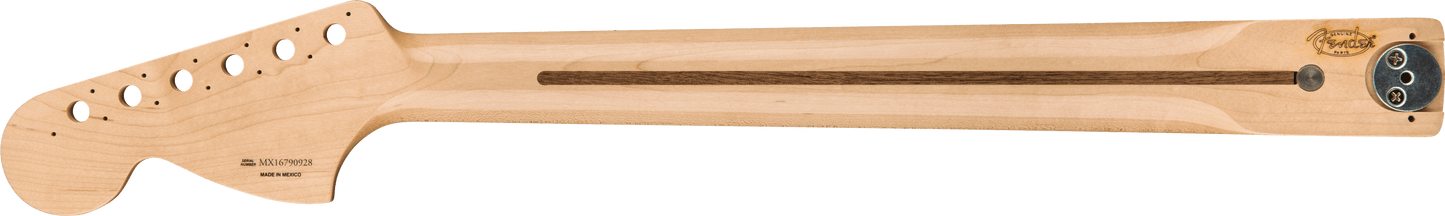

- Walnut "skunk" stripe on back of neck
- Fender® Logo with "Original Contour Body" Decal
Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
Measurements:
Peg Hole Diameter - .358” (9.09 mm)
Headstock Thickness - .540” (13.71 mm)
Thickness at the 1st Fret - .820” (20.82 mm)
Thickness at the 12th Fret - .900” (22.86 mm)
Recommended Tuning Machines:
Vintage-Style Strat/Tele Tuning Machines (p/n 0047912000)
American Vintage Guitar Tuning Machines (p/n 0992040000)
Pure Vintage Guitar Tuning Machines (p/n 0992074000)
Overview
Caratteristiche
- \"U\"-shaped neck profile
- Maple, rosewood, or pau ferro fingerboard with 7.25\" radius
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- Gloss urethane finish
- Bullet-style truss rod adjustment
Generale
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Varie
Style
Vintage-Style
Manico
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
3 or 4-Bolt Configurable (Only two pilot holes drilled)
Neck Shape
"U" Shape
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .900" (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
Generale
Color
Natural
Orientation
Right-Hand
Product Name

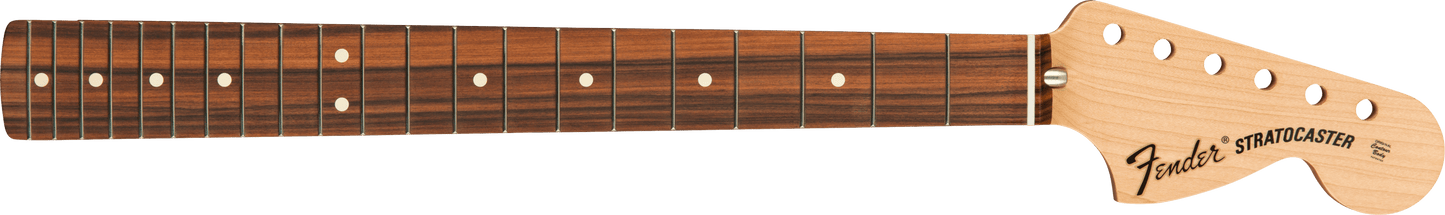

Classic Series '70s Stratocaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets, Pau Ferro Fingerboard
Series
Classic
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Varie
Style
Vintage-Style
Manico
Fingerboard Material
Pau Ferro
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
3 or 4-Bolt Configurable (Only two pilot holes drilled)
Neck Shape
"U" Shape
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .900" (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
String Nut
Synthetic Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
